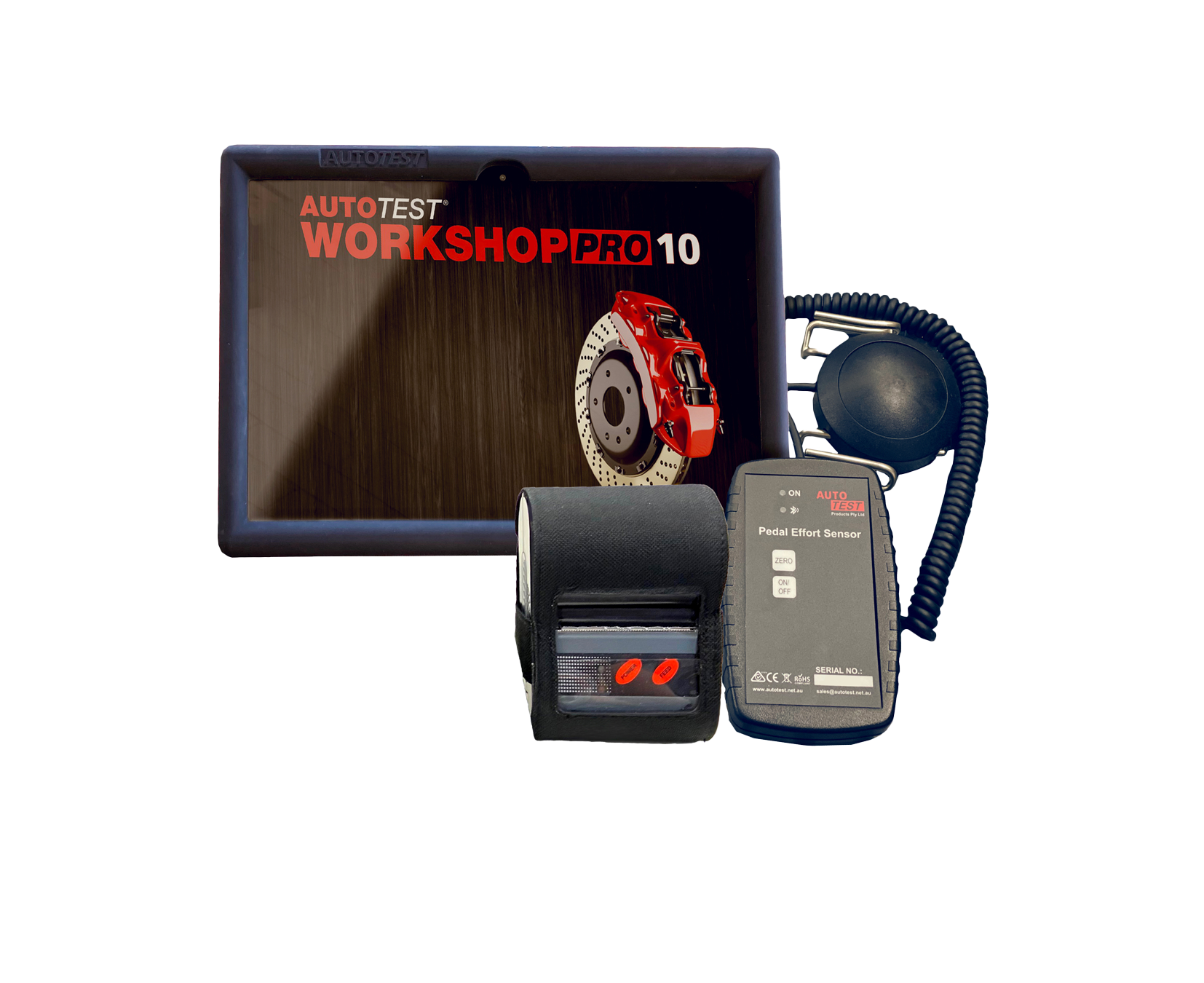

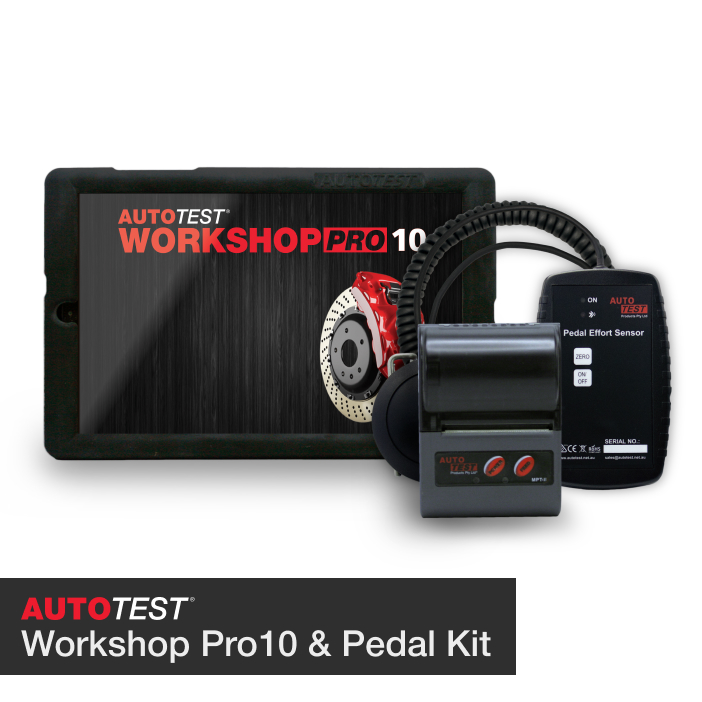

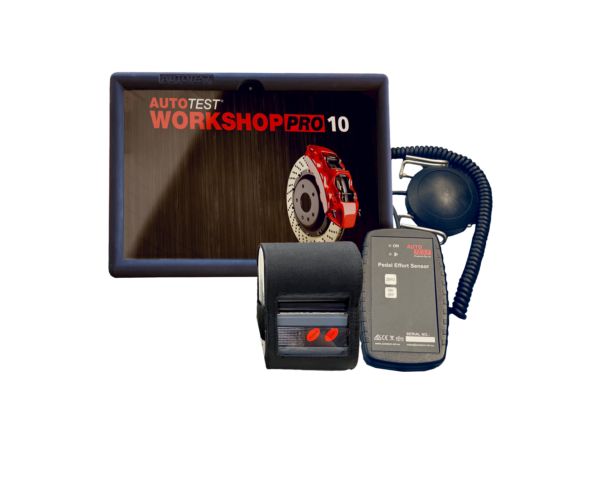

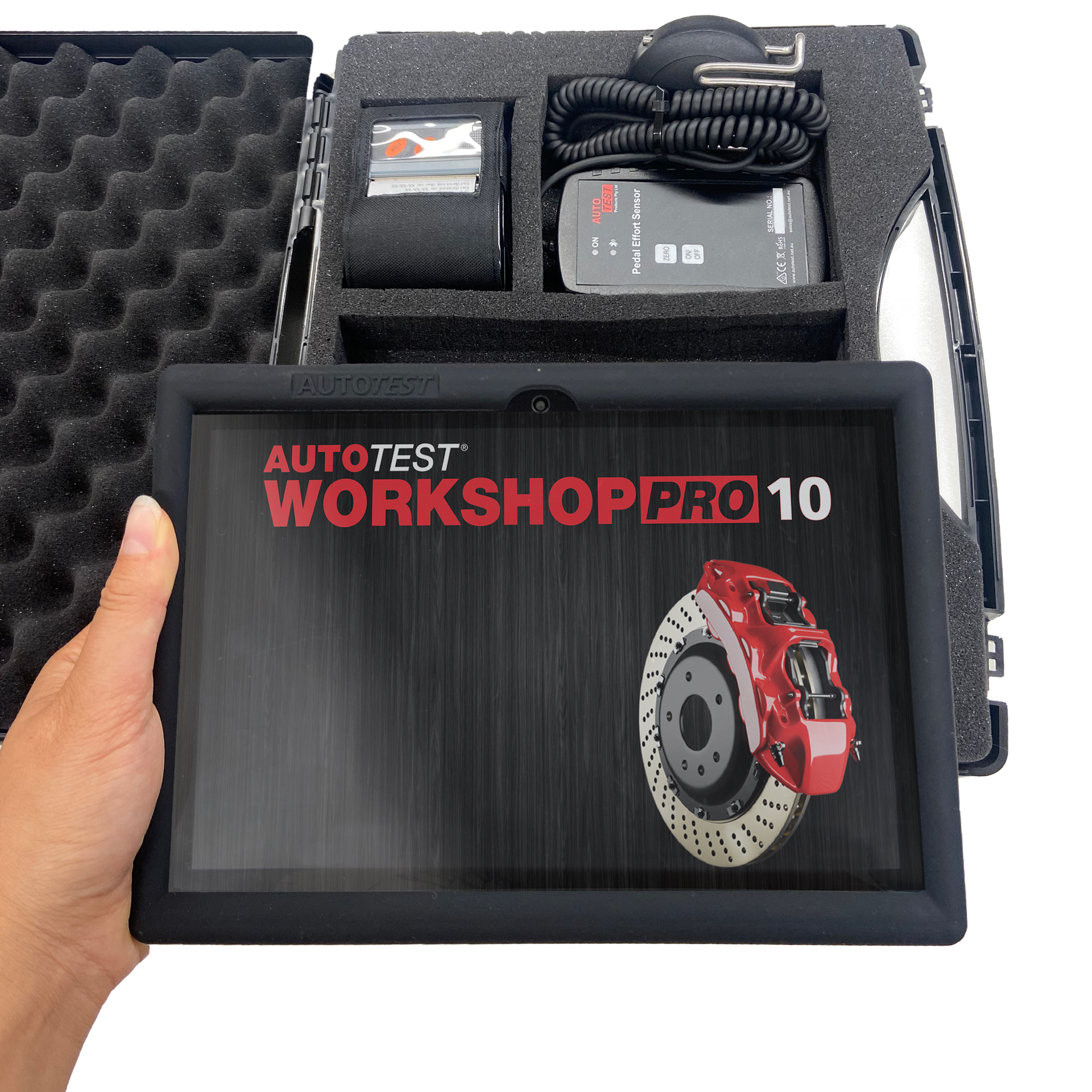

AutoTest® Workshop Pro 10 & Pedal Kit (NSW)

• 10.1” high-definition touch screen
• Calculates and displays average and maximum deceleration, distance to stop, test speed and tri-axial deceleration.
• Calculates and displays MFDD (Mean Fully Developed Deceleration) in accordance with ECE Reg 13
•  Price Competitive
• Tablet: Ultra-lightweight (480g), compact (168 x 242 x 8.1mm) and portable

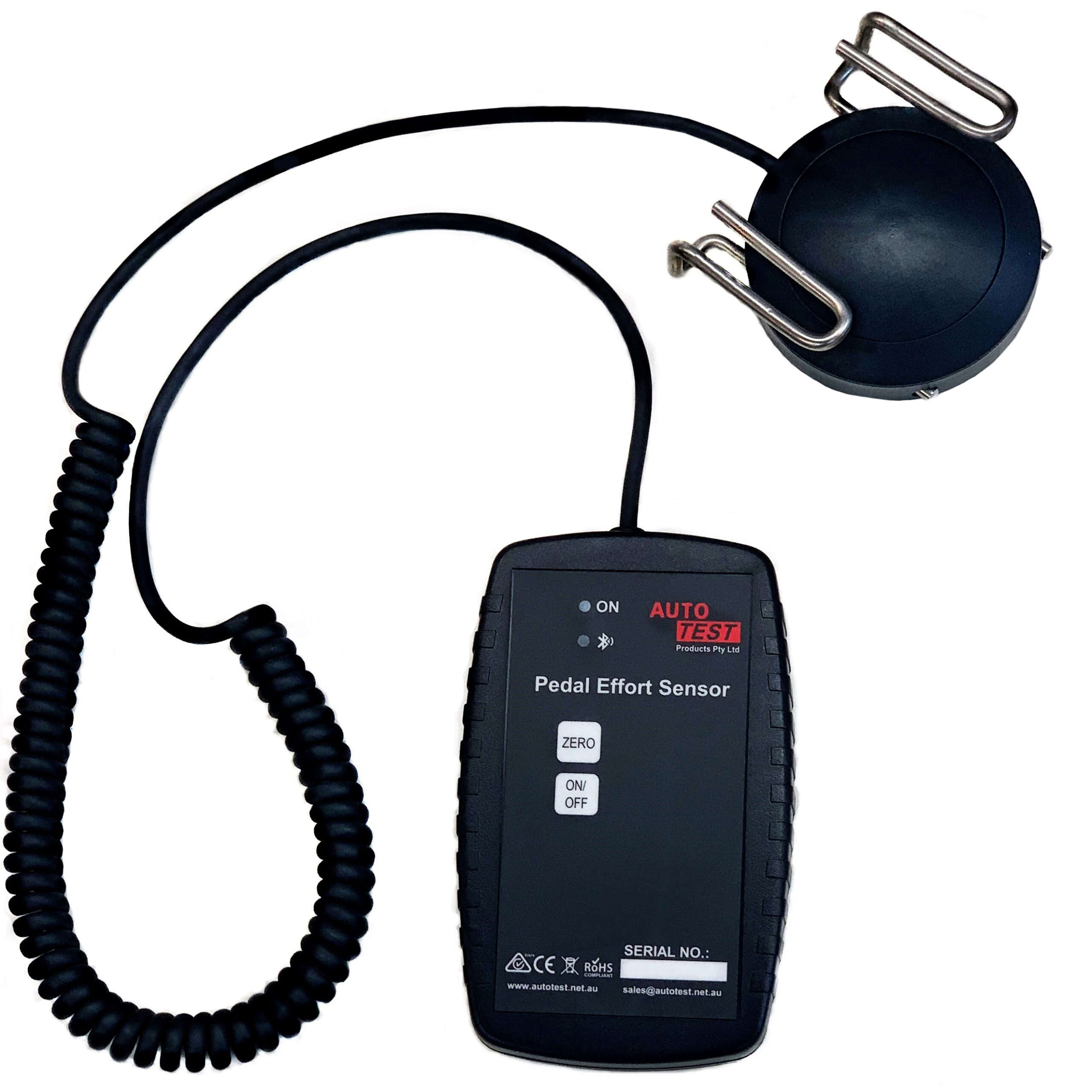

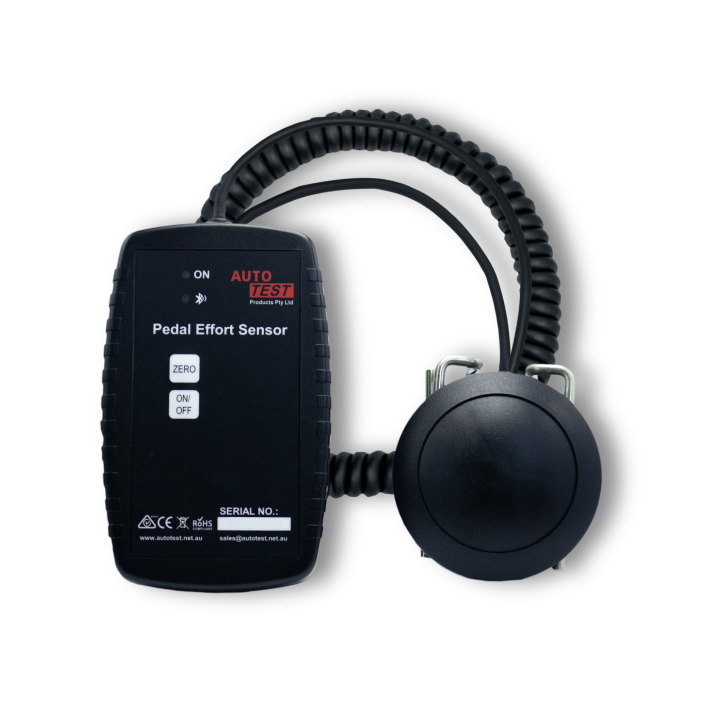

• Pedal Effort Sensor: 500gms, 90x145x32mm
• Robust construction
• Android operating system
• 32GB Storage
• Micro USB for faster charging
• Up to 7 hours of continual use
• WIFI and Bluetooth interface
• Card slot: microSD, up to 256 GB (dedicated slot)
• Has WLAN (Wireless Local Area Network) to connect and communicate via Wi-Fi. Tablet does not support sim cards.
• GPS or Glonass or Galileo positioning receiver, providing longitude and latitude.
• Position acquisition time – 1 Min Maximum
• 12-month licensing
• 12-month warranty
• 2-month calibration for tablet and Pedal Effort Sensor
• Calibration that is internationally traceable through NATA
• Built-in integrity check
• Rechargeable, sealed, Li-Po battery, with low battery level indicator and automatic shut – down.
• Comprehensive after-sales service and assistance

Input:

• Tablet: Accelerometer: rated to less than ±1% over 0-1.5g
• Pedal Effort Sensor: Load Cell: accuracy ±2%

Output:

• Display: 10.1” (1920 x 1200) IPS with capacitive 10-point multitouch
• Graphical output
• Pedal Effort Sensor: Peak pedal effort

Analysis of test results:

• GPS location of test (longitude/latitude)
• Average and maximum deceleration
• Test duration
• Test speed
• Stopping distance
• Time to stop.
• MFDD (Mean Fully Developed Deceleration)
• Side shift
• Stores over 1000 test results with WIFI, USB or Bluetooth

Power source:

• Tablet: Li-Po 4850mAh rechargeable battery
• Pedal Effort Sensor: AA batteries Standard accessories:
• Pedal Effort Sensor* NSW & ACT requirement for compliant brake testing
• Battery charger (Australia Only)

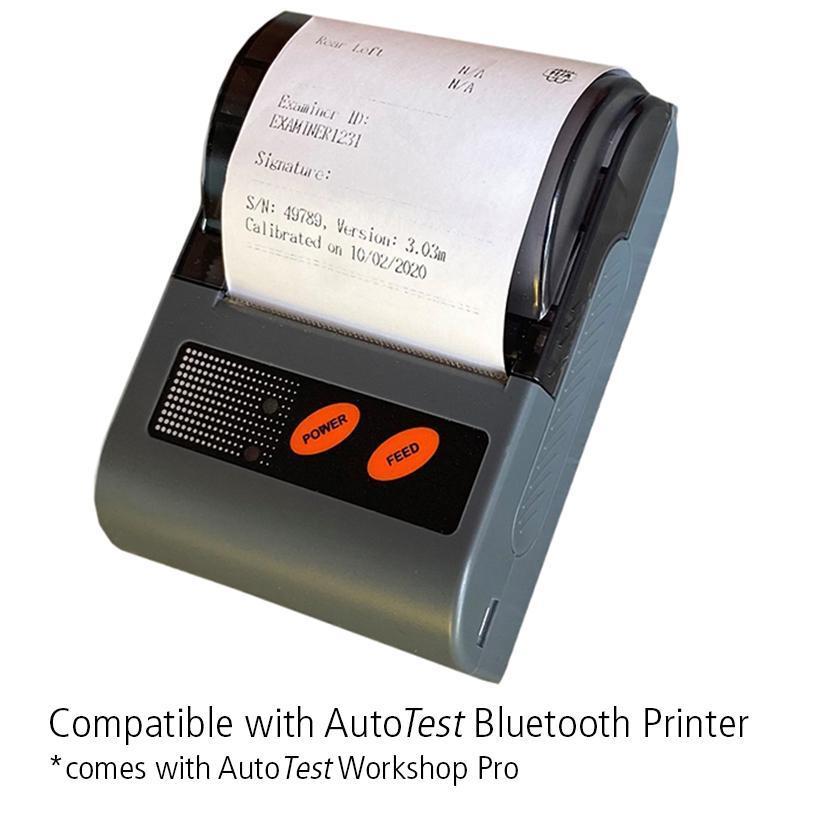

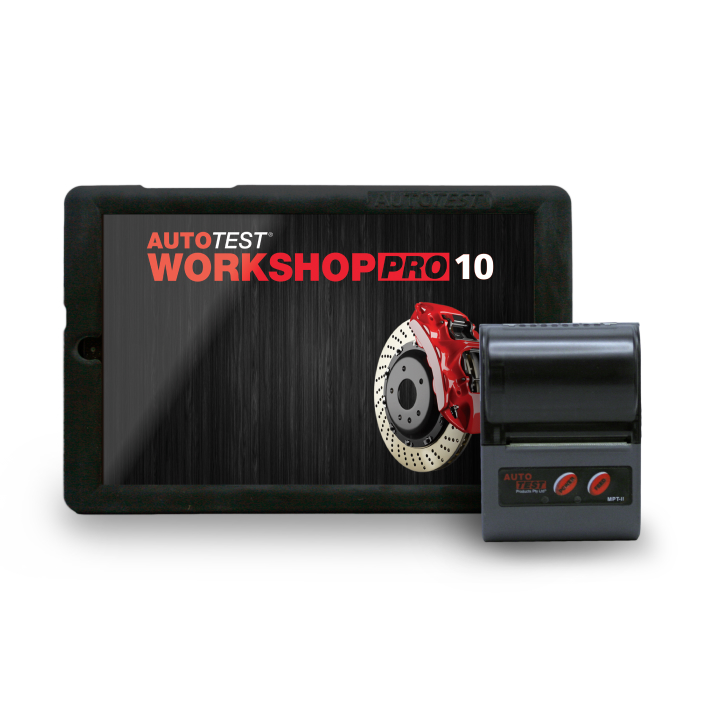

• AutoTest Bluetooth printer
• Velcro for case restraint
• User Manual

Optional features:

• Suction cups for use to secure on motorbikes, quad bikes, etc.
• AutoLight PLUS software available to connect you AutoLight window tint tester 1.0 line/sec.

All light vehicles, 4WD vehicles, Motorbikes and quad bikes, Light mining vehicles, Farming and agriculture vehicles, Airport vehicles, Forklifts, Trains
